How to install a lowrance transducer on a fiberglass boat

The steps on the underside of the hull create a lot of aeration. January 10 2017.

The black and white diagram of a boat at speed is intended to demonstrate water flow created by a fast moving boat and across the face of a transducer.

How to install a lowrance transducer on a fiberglass boat. Stop clamping the transducer cable at the top of the shaft and route the wire to the fish finder. Use a sharp knife to trim the excess length from the nylon wire ties. Attach the transducer cable to the fish finder using the plug on the cable end.

Fiberglass boats come new with a. Installing SonarPhone transducer in Fiberglass boats About Press Copyright Contact us Creators Advertise Developers Terms Privacy Policy Safety How YouTube works Test new features. How To Install A Fishfinder On Fiberglass Boat.

Wrapping Up the Installation. Installing A Transducer On Fiberglass Boat. Setting Out the Cable.

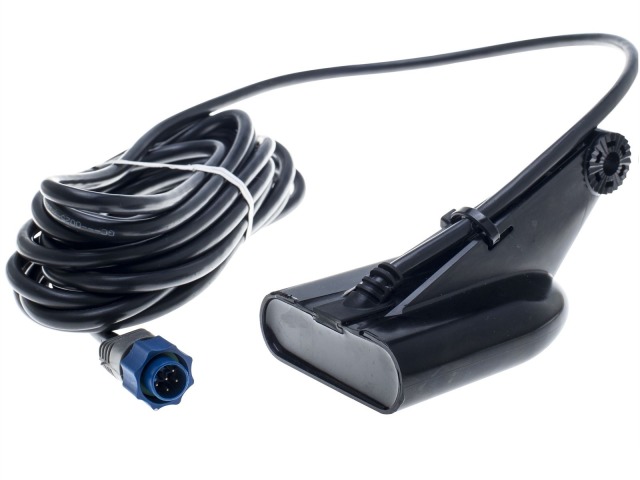

When its Possible to Cut the Transducer Cable. Cut out the supplied template and position it so the arrow at the bottom is aligned with the bottom edge of the transom. Be sure the template is parallel with the waterline then tape it in place.

Using a 964-inch bit drill three holes 78-inch deep at the marked locations. Humminbird has 3 ways to install a DI xducer. Trolling motor mount transom mount or a thru-hull mount.

Only a TM mount will avoid some form of hole in your boat. Using a transducer mounting plate like some of these will minimize holes in the transom and. Provide a fill spout and cap to add fluid.

Cut and position the base of the housing so it will be mounted vertically. Secure the housing to the hull with Marine-Tex for a watertight seal. Mount the transducer through a hole cut in the top of the housing with the face of the transducer facing downward.

How to Install Your TotalScan Transducer Correctly. January 10 2017. Check out this video for installation tips that will help you get the best performance from your TotalScan transducer when the boat is at speed.

Choose a thru-hull or in-hull transducer and mount it just forward of the leading step. The steps on the underside of the hull create a lot of aeration. For a transducer to work it must be mounted just in front of the first step before the source of aeration.

A transom mount transducer should never be installed on a stepped hull. Here are the details on how to install a flush-mount model on a solid fiberglass hull using the Airmar B175HW bronze through-hull transducer a 1 kW ducer that offers a 25-degree beam and a CHIRP frequency band of 150 to 250 kHz used with a Lowrance HDS-12 Gen3 sonar. If anyone has suggestions on proper mounting of transducers for these types of hulls Id appreciate it.

Thought it was the fish finder but identical models on different boats read depths to 100 plus feet on plane. Ive moved my ducers up and down the. Especially fiberglass boats dont usually come with this extra feature therefore most people install it for themselves.

It is not too costly to purchase a fishfinder and so most people do not mind investing a little money. How to Install a Fishfinder on a Fiberglass Boat. Installing a fishfinder might sound like a painfully long and.

How do you install a transducer on a boat. The location should be as close to the center of the boat as possible but on the side of the downward swing the propeller. On the majority of boats this will be on the starboard right side.

Where should your transducer be mounted. Your transducer should be exactly lined up with the hull ie take a straight edge and run it back from the hull and the bottom of the transducer should meet it. About 12 from centre line to.

When installing a Thru-Hull transducer the thru-hull transducer is installed through a hole in the bottom of the boat. Fairing Block Used with thru-hull installations a fairing block is cut to match the deadrise of the hull to ensure water flows smoothly over a thru-hull transducer. Installation Mounting options The transducer can be mounted on the transom jackplate or step.

Use the following table to determine which mounting option is best suited to your boatinstallation preferences. Before drilling any holes ensure that holes are drilled in a safe position. Ensure you do not drill into tanks reservoirs.

Thread the transducer cable through the fairing if used. Apply a 116 thick layer of marine sealant 3M 4200 or Sikaflex 291 are popular choices to the surface of the transducer that will contact the hullfairing and up the stem. The black and white diagram of a boat at speed is intended to demonstrate water flow created by a fast moving boat and across the face of a transducer.

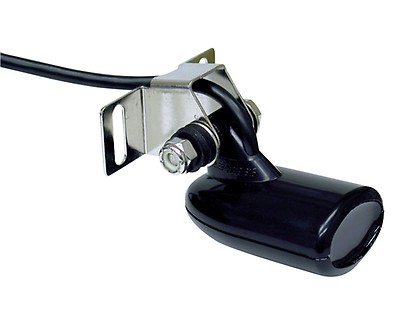

The black and white illustration above is inaccurate for anything except maybe a slow drifting boat but has been widely used for many years to teach the proper adjustment of a transom-mounted transducer for correct high speed use. Use a phillips head screw driver and install the transducer onto the base plate. Flip the kayak over and remove the Lowrance ready plate.

Run the transducer cable up through the scupper and then use the screws provided with the new adaptor to attach the transducer to the kayak.
